10k HD - 15k Dexter Multi Axle HD Hanger Kit 3" Wide Springs 42.25" Spread (DXP-HAP-203-02)

Kit includes 18-3/8" long equalizers and bolts and shackles for suspending your leaf springs from your trailer frame. Use with HAP-103-00 for a complete tandem-axle kit. Designed for use with 10,000-lb to 15,000-lb, heavy-duty Dexter axles.

Features:

Attaches 4 leaf springs (sold separately) to your trailer frame

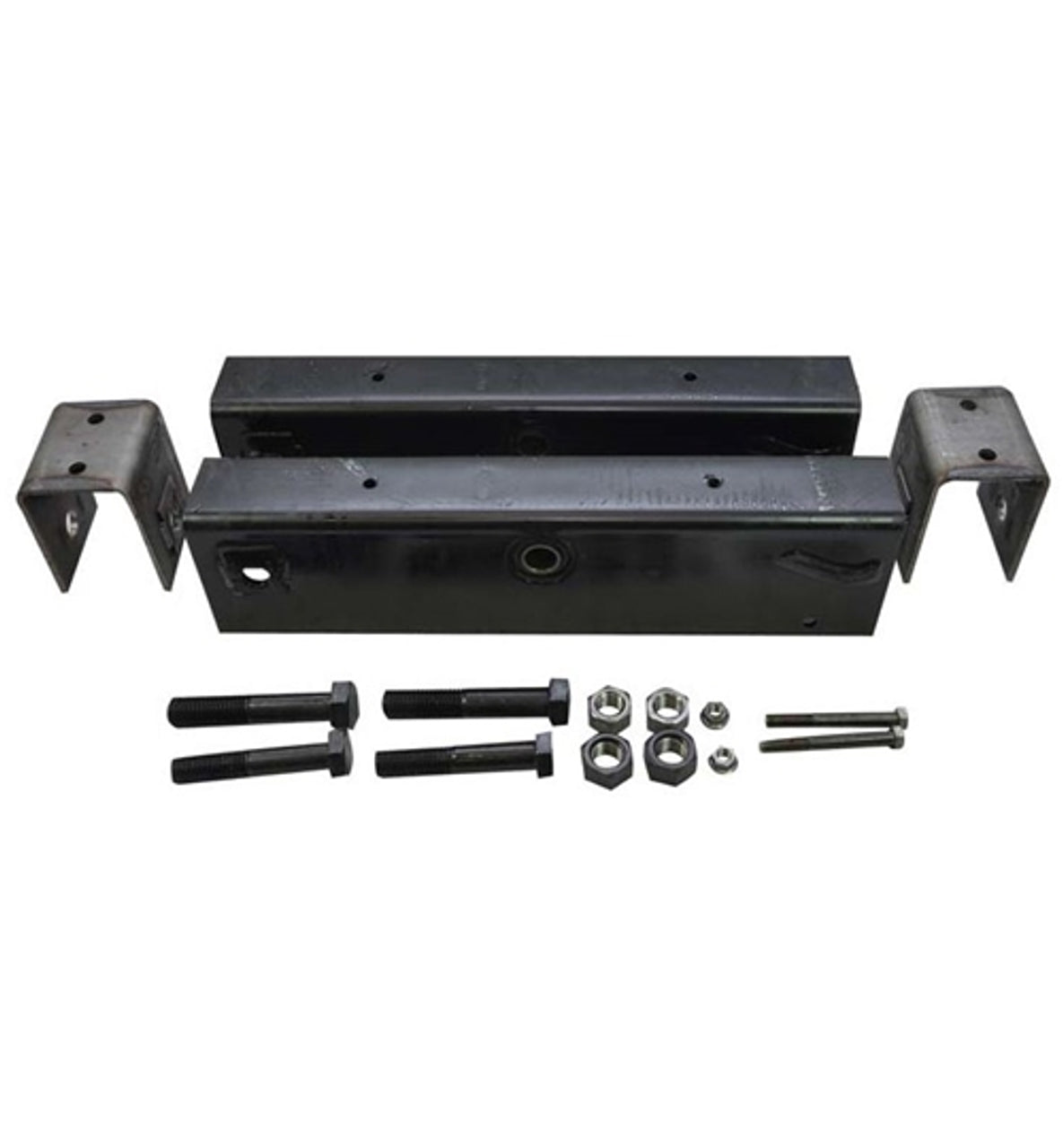

Includes:
(2) 6-1/2" Tall center hangers with 1-1/8" bolt holes (29-37-4)
(1) 18-3/8" Long, left-hand equalizer (13-108-3LH)

Allows for 42-1/4" between axles

(1) 18-3/8" Long, right-hand equalizer (13-108-4RH)

Allows for 42-1/4" between axles

(2) 4-1/2" Long x 1/2" diameter spring keeper bolts (7-95)
(2) 1/2" Diameter Locknuts (6-46)
(2) 5-1/2" Long x 1" diameter spring-eye bolts (7-169)
(2) 1" Diameter Locknuts (6-112)
(2) 6" Long x 1-1/8" diameter equalizer bolts (7-170)
(2) 1-1/8" Diameter Locknuts (6-72)

Use in conjunction with HAP-103-00 for complete kit

HAP-103-00 includes front and rear hangers and Mounting Hardware

Designed for use on trailers with tandem, 10,000-lb to 15,000-lb, heavy-duty Dexter axles
Does not include components for mounting axle to springs
